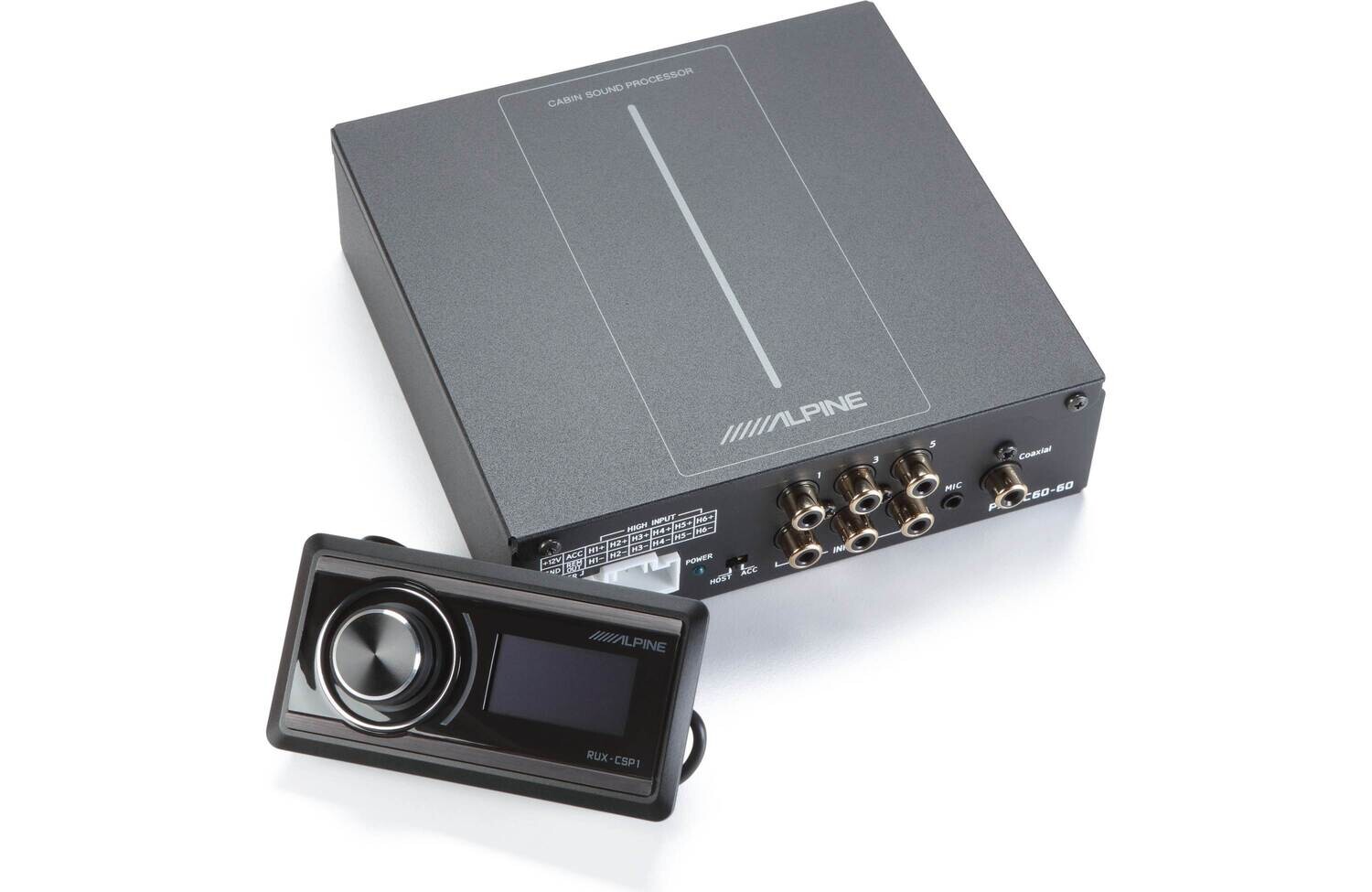

OPTIM™6 six-channel digital signal processor with automatic sound tuning

Alpine has eliminated the pain and confusion that often goes along with trying to tune your system's sound using a digital signal processor (DSP) by making an audio processor that tunes itself. The Alpine Optim6™ sIx-channel PXE-C60-60 features automatic sound tuning and High-Definition performance so you'll experience exceptional fidelity, clarity, balance, and impact in your music without having to spend hours fiddling with controls and testing devices.

PRODUCT DETAILS:

• 6-channel digital signal processor
• High-Resolution processing: 96 kHz, 24-bit
  • frequency response: 20-40,000 Hz
• initial setup made via Alpine's DSP control app on your PC device
  • automatic tuning via iPhone uses built-in mic and Bluetooth® connection (dongle included)
  • signal processing includes input/output routing, 31-band EQs, and multi-channel time alignment
  • Anti-EQ eliminates factory EQ curves
  • inputs: coax and USB digital (up to 192 kHz, 32-bit); 6-channel high-level speaker (up to 26V); 6-channel RCA
    • amp's remote turn-on circuit ("Switched Power Lead") uses the included high-level input harness
  • preamp outputs: 6-channel processed (4V)
  • dimensions: 5.72"W x 1.67"H x 8.46"D (includes wiring)
  • 6-Channel DSP processor
  • CSP Controller (attached 16" cable with 4-pin connector)
  • 16.25' Controller cable (4-pin connector on one end / RJ-12 connector on other end)
  • KCE-800BT Bluetooth module (attached 6" cable terminated in an RJ-45 connector)
  • 5' USB-A cable (2.0)
  • 6" Wire harness (in-line 5A mini-ATC fuse)
  • 2 Mounting plates
  • Four 3/4" pan-head screws
  • Eight 6mm counter-sunk machine screws
  • Quickstart guide (En/ Sp/ Fr/ Others)
  • Warranty information
  • Product registration
