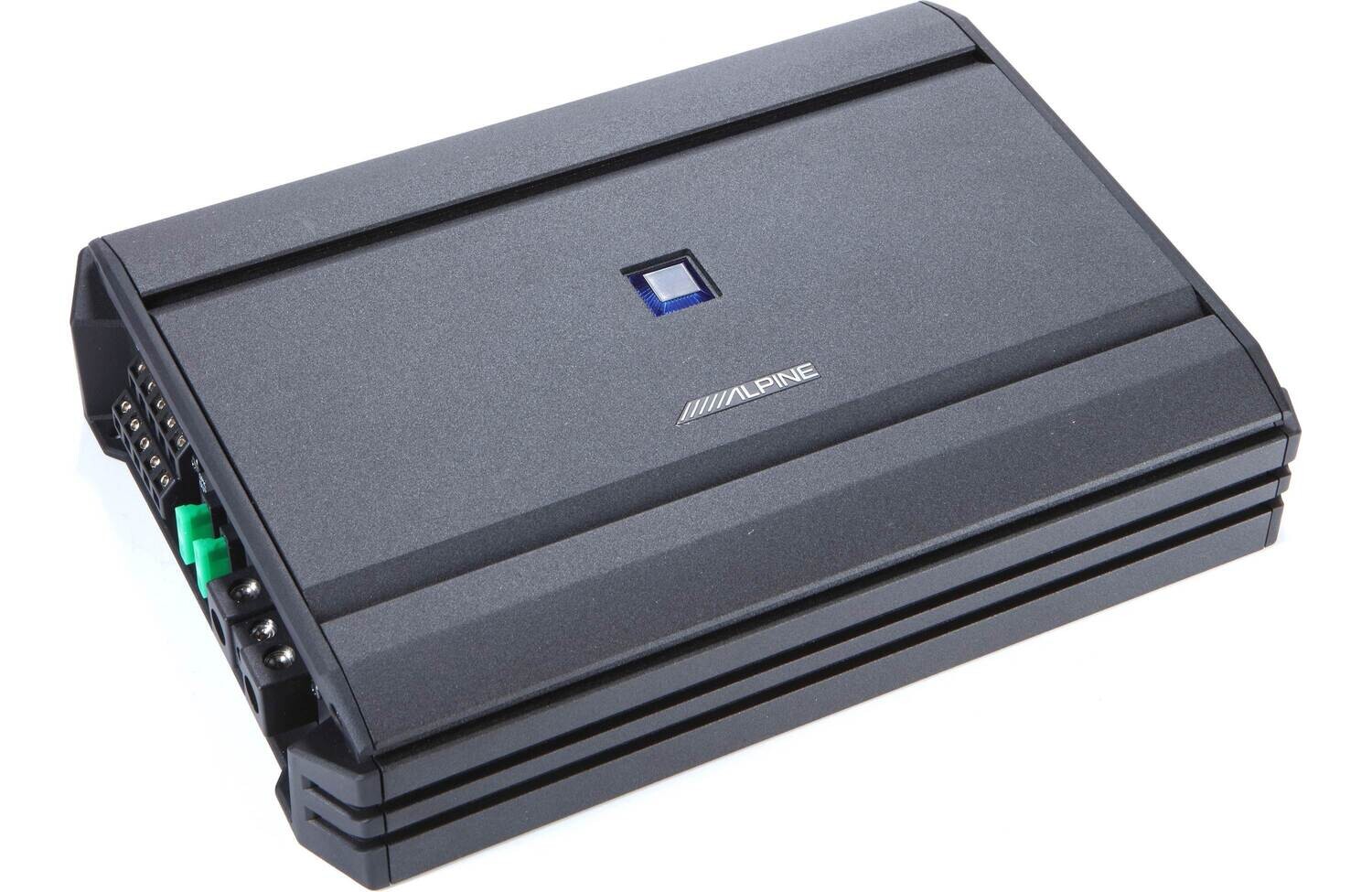

S-Series 5-channel car amplifier — 40 watts RMS x 4 at 4 ohms + 300 watts RMS x 1 at 2 ohms

PRODUCT DETAILS:

• 5-channel car amplifier
  • 40 watts RMS x 4 + 200 watts RMS x 1 at 4 ohms
  • 60 watts RMS x 4 + 300 watts RMS x 1 at 2 ohms
  • 120 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
• CTA-2006 compliant
• variable high-pass filter (50-400 Hz, 12 dB/octave) on 4-channel section
• variable low-pass filter (50-400 Hz, 24 dB/octave) on sub channel
• variable bass boost (0-12 dB at 50 Hz) on sub channel
• wiring and hardware not included with amplifier
  • 4-gauge power and ground leads recommended
• fuse rating: 30A x 2
• dimensions: 13-1/4"W x 2-5/16"H x 8-1/16"D
• 5-Channel amplifier
• Two 30-amp ATO fuses (installed)
• Four 3/4" Screws
• 2mm Allen wrench
• Owner's manual (English/ French/ Spanish)
• Alpine Verification Certificate
• Warranty information
• Power supply note
• On-line product registration information
