Alpine's S-Series Speakers have been redesigned with upgrades to voice coil size and cone material to provide premium sound quality. The new benchmark for entry OEM upgrades!
FEATURES
S-Series speakers deliver the winning combination of incredible sound and value within the entry-level category
Larger voice coil and new CFRP (Carbon Fiber Reinforced Plastic) cone
Now with Alpine’s patented HAMR (High Amplitude Multi-Roll) Surround, allowing for large amounts of linear air movement

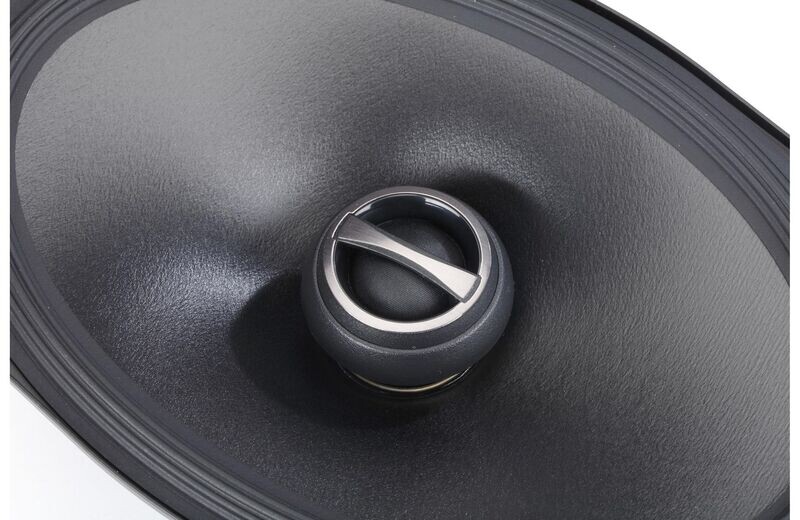

1-inch silk dome tweeter
Available 6x9-inch S-Series Speaker Grills (sold separately)
TECH SPECS
Dimensions:
Woofer Size: 6" x 9" (16cm x 24cm)
Tweeter Size: 1" (2.5cm)
Cutout Diameter: 5 29/32" x 8-3/4" (15cm x 22.2cm)
Mounting Depth: 2-15/16" (5.8cm)
Specs:
Peak Power Capacity: 260W
Max RMS Power Capacity: 85W
Impedance: 4 ohms
Frequency Response: 65 Hz - 22 kHz
Sensitivity: 90 dB SPL (1W @ 1m)
Recommended Amplification: Up to 85W RMS per channel
