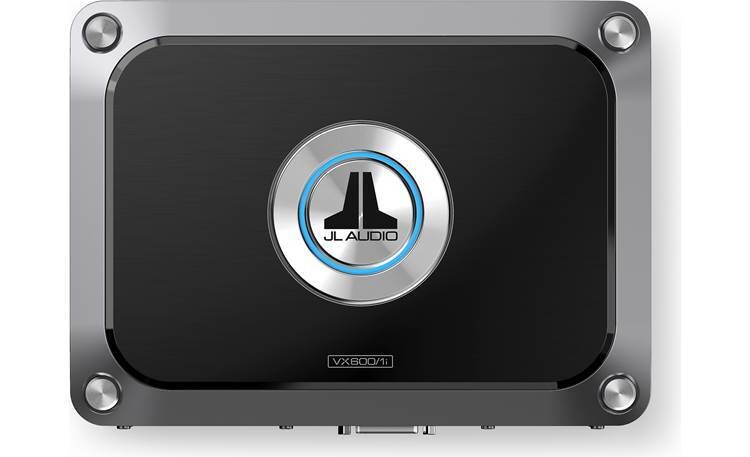

Mono subwoofer amplifier with digital signal processing — 600 watts RMS x 1 at 2 ohms

The VX600/1i mono subwoofer amplifier can put out up to 600 watts RMS for your sub, and features 3 channels of digital signal processing. You could set up a system, for example, by routing the signal from the receiver to this sub amp first, and then sending a processed stereo signal on to a separate amplifier for your other speakers.

PRODUCT DETAILS:

• mono subwoofer amplifier
• 400 watts RMS x 1 at 4 ohms (600 watts RMS at 2 ohms)
• Class D amplifier design with NexD2™ switching amp technology
• 24-bit 96 kHz digital processing
• DSP adjustments and settings made with JL Audio's TüN app (PC and Mac) via USB, via Bluetooth (tablets and phones) with BTC Bluetooth option
• 3 Project Levels of tuning: Basic, Advanced, Expert
• input routing and mixing
• adjustable gain controls with clip indication
• fully adjustable high-pass, low-pass, and bandpass filters
  • selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave)
• 10-band EQ (graphic in Basic, parametric in Advanced and Expert modes)
• phase and polarity control
• time alignment in 0.01 ms (1/8") increments
• USB connection for device running TüN app (6-foot cable included)
• wiring, fuse, and hardware not included with amplifier
  • 4-gauge power and ground leads and a 50-amp fuse recommended
• 9-1/16"W x 2-1/8"H x 6-3/4"D
• Monoblock amplifier
• Power connector
• 14" Analog Input harness (15-pin D-Sub/4 RCA)
• Subwoofer output connector
• 18" Speaker wire loom
• "Sub" wire label
• 6' USB cable (Type A USB on one end and Type B USB on other end)
• 4 Corner caps
• Corner cap tool
• 2 Silver thumbscrews
• 2 Black hex cap machine screws
• 2.5mm Hex wrench
• 3mm Hex wrench
• JL Audio logo badge
• Connection Guide
• Registration card
